Microphones on Stands

スタンド周辺アクセサリ

　Stand Clamps

Stand Clamp SG 20 for a microphone with 20 mm in diameter (e.g. CMC or CMBI) The base of the SG 20 has a 5/8"-27 NS internal thread. A threaded adapter is supplied for 3/8" and 1/2" mounting. The angle can be varied continuously in the vertical plane. Color: gray

Stand Clamp SG 22 The angle between the microphones can be varied as well as the angle of inclination for the pair. However, the SG 22 is not suitable for stereo pickups because of the very limited range of angles and spacings possible between the microphones. It is primarily intended for holding a main microphone and a backup when extreme operational security is required. In the mid-position (shown at left) the microphones are oriented perpendicular to the microphone stand. The angle of inclination is +90° to -90° from the mid position.

Stand Clamp SG 22 MOD Holds two microphones in parallel alignment. Their distance can be varied from 4 mm to 52 mm, while they can be oriented parallel to the stand, perpendicular to the stand, or at any angle in between. Certain "near-coincident" microphone arrangements for stereo recording can be created in this way. With a pair of CMC amplifiers placed upright side by side, radially-addressed Colette directional capsules (the MK 4V, MK 41V, MK 6 and MK 8) can be used with any desired angle set between their main axes. The other directional capsules (the MK 4, MK 41 and MK 5) can be used with GVC angle adapters; even some coincident microphone setups are then possible.

Miniature Swivel Stand Couplers SGC, SGCM for CCM Compact Microphones or Active Cable with MK microphone capsule adjustable from 0° through 100° in either direction The internal thread of the SGC or SGCM screws onto any 3/8" rod (e.g. vertical support rods STR) or stand adapter. The SGC is an integral part of the HC cable hanger and the TCg table stand. Color: gray/ black

SGCM all-metal clamp with black chrome finish ? stable construction with knurled screw for especially secure grip SGC Clamp made of gray plastic material ? the unobtrusive, esthetic standard version

Elastic Suspensions

Elastic Suspensions with Swivel A 20 S, A 20 for a microphone with 20 mm diameter (e.g. CMC or CMBI) The A 20 is recommended when only the CMC microphone amplifier and an MK capsule are used, and maximum protection from vibration is desired, for example, on a boom. When accessories such as the CUT filters, GVC or SKC 200g are added to the microphone, the stiffer elastics of the A 20 S standard version are required. A special clamp secures the microphone cable. This is necessary with the A 20 and advantageous with the A 20 S. The microphone can be tilted to any angle. Threads: 5/8"-27 NS with adapter for 3/8" and 1/2" Color: gray

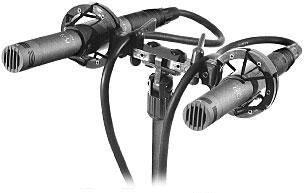

Elastic Double Suspension A 22 S, A 22 twin version of the A 20 The angle between the microphones can be varied as well as the angle of inclination for the pair. However, it is not suitable for stereo pickups because of the very limited range of angles and spacings possible between the microphones. This type of clamp is primarily intended for holding a main microphone and a backup when extreme operational security is required. The A 22 S is the standard version. The A 22 has softer elastics. Color: gray

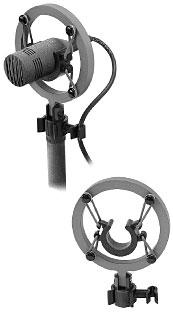

Elastic Miniature Suspension with Swivel AC for CCM Compact Microphones or Active Cable with MK microphone capsule variable angle Matching pop filter: B 1 or B 5. Not intended for use with larger, heavier windscreens. Diameter: 61 mm; thread: 3/8"; color: gray
